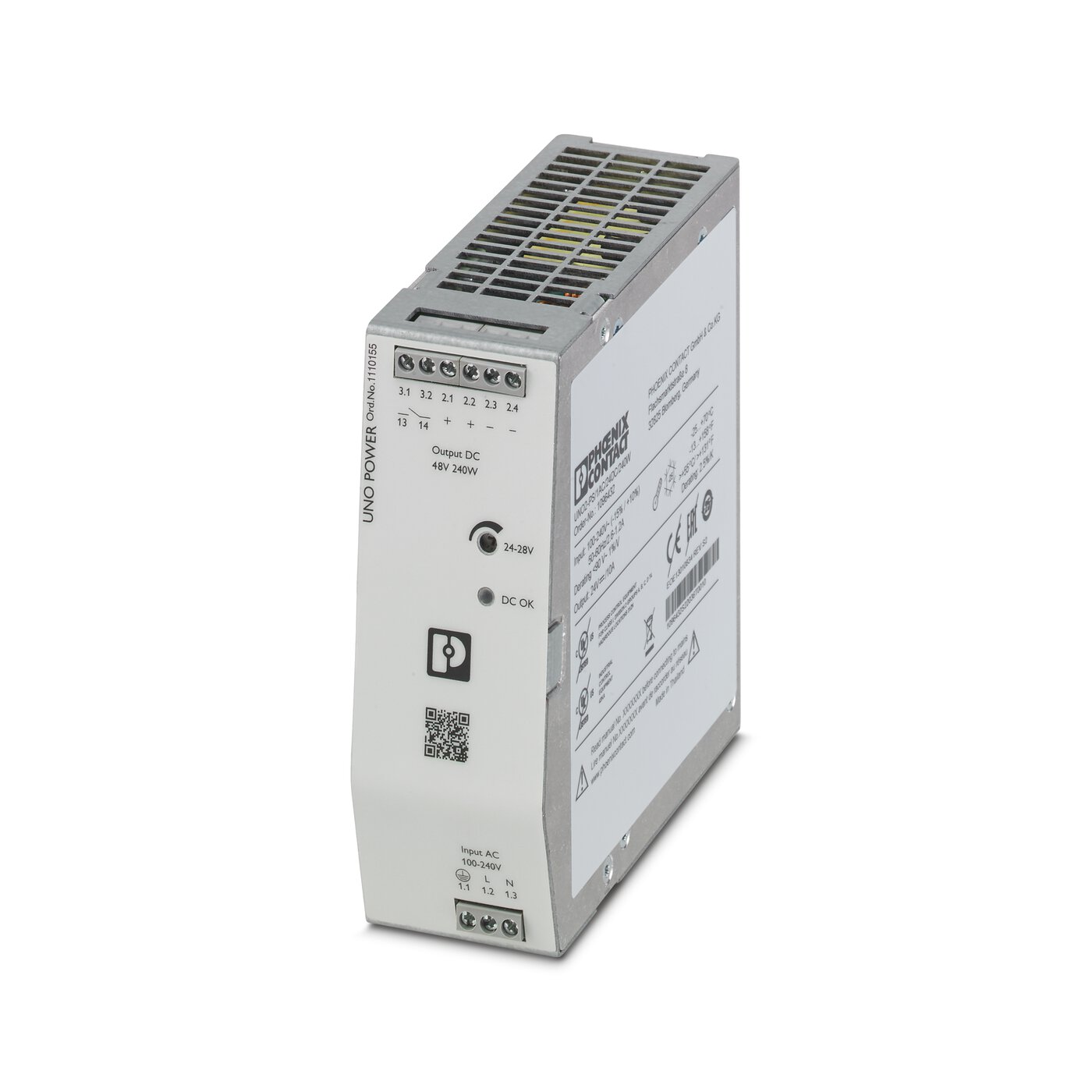

Sursa Phoenix Contact-UNO2-PS/1AC/48DC/240W

Name: Sursa Phoenix Contact-UNO2-PS/1AC/48DC/240W
SKU: 1110155
Availability: BackOrder

Sursa Phoenix Contact-UNO2-PS/1AC/48DC/240W

934,94 lei

Specificații tehnice:

• Alimentare sursa: 100 V AC ... 240 V AC -15 % ... +10 %
• Tensiune iesire:48 V DC
• Curent de iesire:5 A
• Putere nominala:240 W
• Dimensiuni: 13x45x129mm

Disponibil pentru pre-comenzi

Cod produs: 1110155

Producător: Phoenix Contact

Descriere

AC operation
Supply system configuration	Star network (TN, TT, IT (PE))
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %
Derating	< 90 V AC (1 %/V)
Typical national grid voltage	120 V AC
Typical national grid voltage	230 V AC
Voltage type of supply voltage	AC
Inrush current	typ. 10 A (at 25 °C)
Inrush current integral (I²t)	< 0.05 A²s
Frequency range (f_N)	50 Hz ... 60 Hz ±10 %
Mains buffering time	typ. 20 ms (120 V AC)
Mains buffering time	typ. 20 ms (230 V AC)
Current consumption	2.6 A (100 V AC)
	2.2 A (120 V AC)
	1.16 A (230 V AC)
	1.2 A (240 V AC)
Protective circuit	Transient surge protection; Varistor, gas-filled surge arrester
Switch-on time	typ. 530 ms
Device mains fuse	5 A internal (device protection), fast-blow
Recommended breaker for input protection	10 A ... 16 A (Characteristic B, C, D, K or comparable)
Discharge current to PE	< 3.5 mA

Output data

Efficiency	typ. 91.5 % (120 V AC)
Efficiency	typ. 93 % (230 V AC)
Nominal output voltage	48 V DC
Setting range of the output voltage (U_Set)	42 V DC ... 56 V DC (≥48 V DC, constant capacity restricted<48 V DC, constant current restricted)
Nominal output current (I_N)	5 A
Short-circuit-proof	yes
No-load proof	yes
Crest factor	typ. 1.637 (120 V AC)
Crest factor	typ. 1.54 (230 V AC)
Output power (P_N)	240 W
Connection in parallel	yes, for redundancy
Connection in series	yes, for increased output voltage
Feedback voltage resistance	≤ 60 V DC
Protection against overvoltage at the output (OVP)	≤ 60 V DC
Residual ripple	typ. 50 mV_PP (with nominal values)
Control deviation	< 1 % (change in load, static 10 % ... 90 %)
	< 3 % (change in load, dynamic 10 % ... 90 %)
	< 0.1 % (change in input voltage ±10 %)
Rise time	< 1 s (U_Out = 10 % ... 90 %)
Minimum no-load power dissipation	< 2.9 W (120 V AC)
Maximum no-load power dissipation	< 3 W (230 V AC)
Minimum nominal load power dissipation	< 37 W (120 V AC)
Power loss nominal load max.	< 28 W (230 V AC)
Signal relay 13/14
Connection level	3.x
Connection labeling	3.1 (13), 3.2 (14)
Switch contact (floating)	OptoMOS
Switching voltage	max. 30 V AC/DC
Switching voltage	max. 60 V DC
Current carrying capacity	max. 50 mA
State condition	U_OUT ≥ 0.9 x U_N (U_N = 48 V DC) (Contact closed)
	U_OUT < 42 V DC (Contact open)
	U_OUT > 60 V DC (Contact open)
