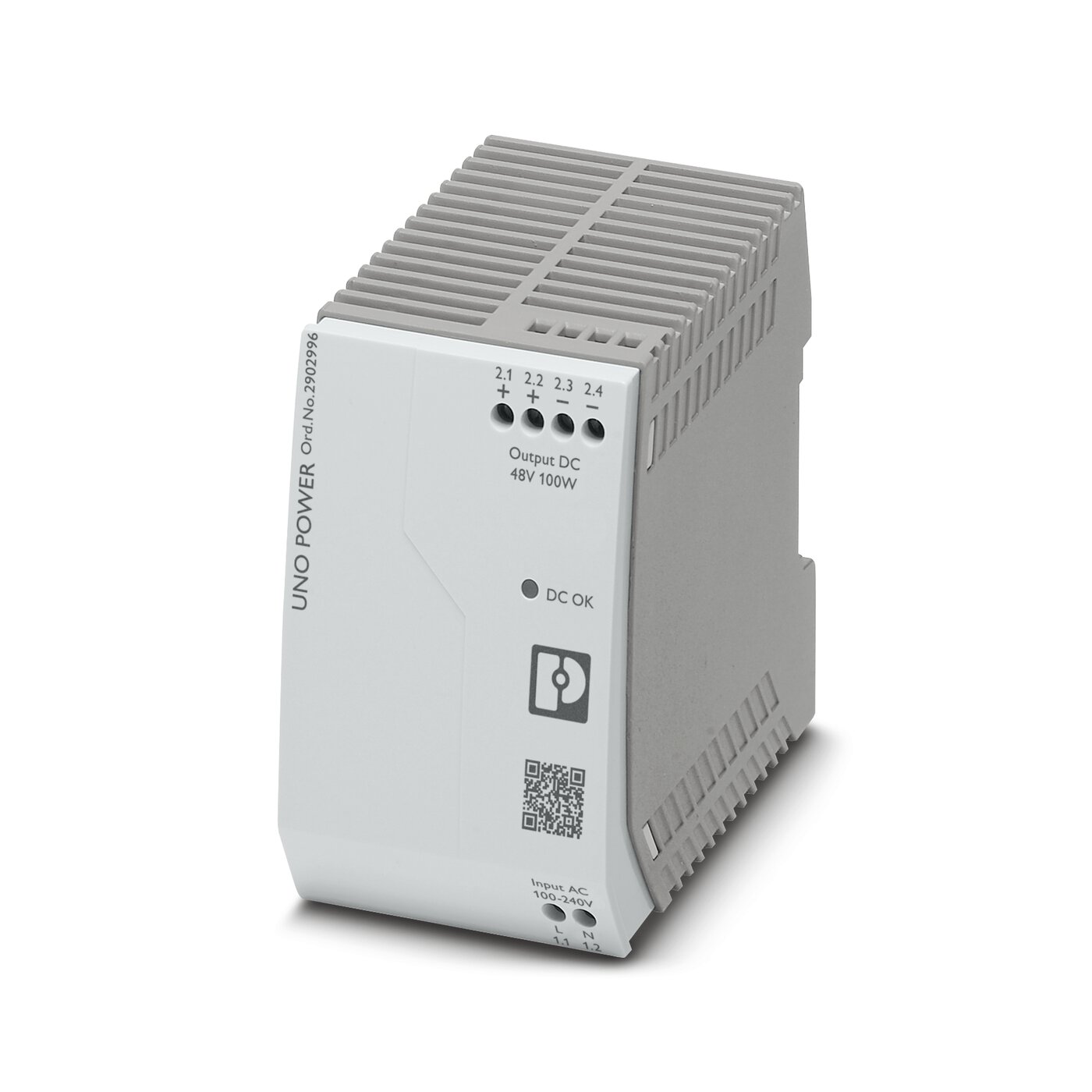

Sursa Phoenix Contact-UNO-PS/1AC/48DC/100W

Name: Sursa Phoenix Contact-UNO-PS/1AC/48DC/100W
SKU: 2902996
Availability: BackOrder

Sursa Phoenix Contact-UNO-PS/1AC/48DC/100W

842,05 lei

Specificații tehnice:

• Alimentare sursa:85 V AC ... 264 V AC
• Tensiune iesire:48 V DC ±1 %
• Curent de iesire:2.1 A (-25 °C ... 55 °C)
• Putere nominala:100 W
• Dimensiuni: 90x55x84mm

Disponibil pentru pre-comenzi

Cod produs: 2902996

Producător: Phoenix Contact

Descriere

AC operation
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	85 V AC ... 264 V AC
Input voltage range AC	85 V AC ... 264 V AC
Voltage type of supply voltage	AC
Inrush current	< 40 A (typ.)
Inrush current integral (I²t)	< 1.4 A²s (typ.)
Frequency range (f_N)	50 Hz ... 60 Hz ±10 %
Mains buffering time	> 25 ms (120 V AC)
Mains buffering time	> 90 ms (230 V AC)
Current consumption	typ. 2.2 A (100 V AC)
Current consumption	typ. 1.1 A (240 V AC)
Nominal power consumption	213.3 VA
Protective circuit	Transient surge protection; Varistor
Power factor (cos phi)	0.52
Typical response time	< 1 s
Input fuse	4 A (slow-blow, internal)
Recommended breaker for input protection	6 A ... 16 A (Characteristics B, C, D, K)

Output data

Efficiency	typ. 88 % (120 V AC)
Efficiency	typ. 90 % (230 V AC)
Output characteristic	HICCUP
Nominal output voltage	48 V DC ±1 %
Nominal output current (I_N)	2.1 A (-25 °C ... 55 °C)
Derating	55 °C ... 70 °C (2.5%/K)
Feedback voltage resistance	< 60 V DC
Protection against overvoltage at the output (OVP)	≤ 60 V DC
Control deviation	< 1 % (change in load, static 10 % ... 90 %)
	< 2 % (Dynamic load change 10 % ... 90 %, 10 Hz)
	< 0.1 % (change in input voltage ±10 %)
Residual ripple	< 40 mV_PP (with nominal values)
Short-circuit-proof	yes
Output power	100 W
Maximum no-load power dissipation	< 0.4 W
Power loss nominal load max.	< 11 W
Rise time	< 0.5 s (U_OUT (10 % ... 90 %))
Response time	< 2 ms
Connection in parallel	yes, for redundancy and increased capacity
Connection in series	yes
